Neural Network Inference Accelerator

Verilog · Artix-7

A 24-class ASL hand-sign classifier trained in PyTorch, then quantized and rebuilt as hardware — inference runs entirely on FPGA fabric at 100 MHz with no CPU and no external memory.

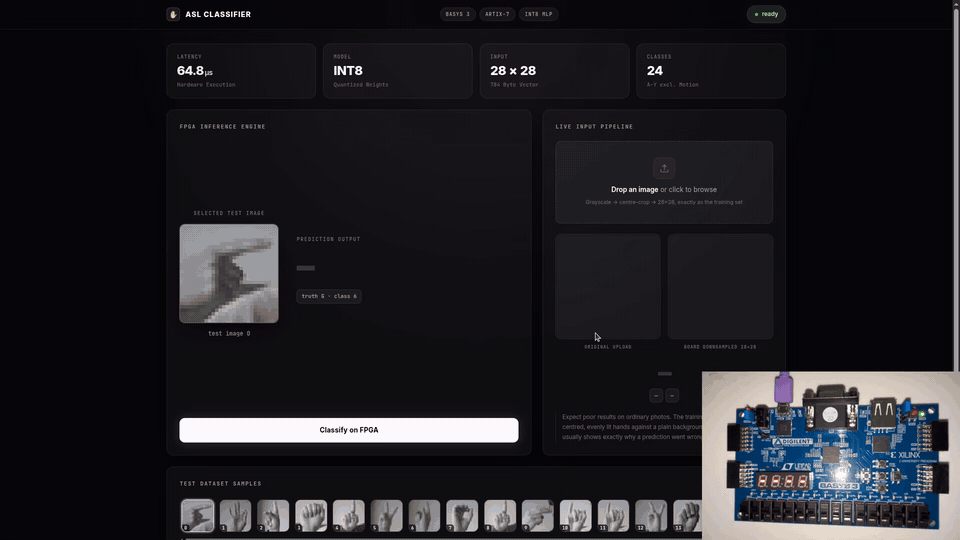

Browser dashboard for the ASL classifier showing 64.8 microsecond latency, INT8 precision, 28 by 28 input and 24 classes, with the Basys 3 board inset at lower right.
Host dashboard driving the Basys 3 over serial — test image, prediction, and live upload pipeline.

Stack

Hardware Xilinx Artix-7 XC7A35T, Digilent Basys 3
RTL Verilog, Vivado, DSP48E1 MAC Array
ML Pipeline PyTorch, INT8 Post-Training Quantization
Verification Golden Model, Self-Checking Testbenches, SymbiYosys

The build

  • Trained a 784→128→24 classifier in PyTorch, then built the accelerator to run that same network on-chip — weights live in block RAM, so nothing leaves the fabric at inference time
  • Wrote an end-to-end Python quantization toolchain that computes per-layer scale factors, converts FP32 weights to INT8 using power-of-two shifts so rescaling reduces to a bit shift in hardware, and emits the memory initialization files the RTL loads
  • Built a cycle-accurate Python golden model and a self-checking test harness that proved the implementation bit-exact against it, which caught quantization and overflow defects before anything reached the board
  • Extending verification with SystemVerilog assertions discharged formally in SymbiYosys — proving accumulator overflow cannot occur for any legal input sequence, and that the datapath handshake is deadlock-free
  • A browser dashboard drives the board over serial — pick a test image or drop in a photo, which is converted to grayscale, centre-cropped and downsampled to 28×28 to match the training distribution
  • Every prediction is checked against a software reference model running the same quantized weights, so a hardware/software mismatch is immediately visible

Results

Accuracy, FP32 baseline 93%
Accuracy, INT8 on hardware ~92%
Inference latency 64.8 μs
Clock 100 MHz
Input 28 × 28, 784-byte vector
Classes 24, A–Z excluding motion letters
External memory None
Softcore CPU None

Honest state of the project

The first version of this RTL was written with heavy AI assistance. It runs on the board and the numbers are real, but I am rebuilding the datapath by hand — accumulator sizing, quantization scaling and the control FSM — so that I can defend every line of it. I would rather say that plainly than be caught out on it in a whiteboard session.

The MLP was the right first target for learning the toolchain, but the interesting hardware problem is a systolic or tiled MAC array with proper weight reuse. That's the next build.
